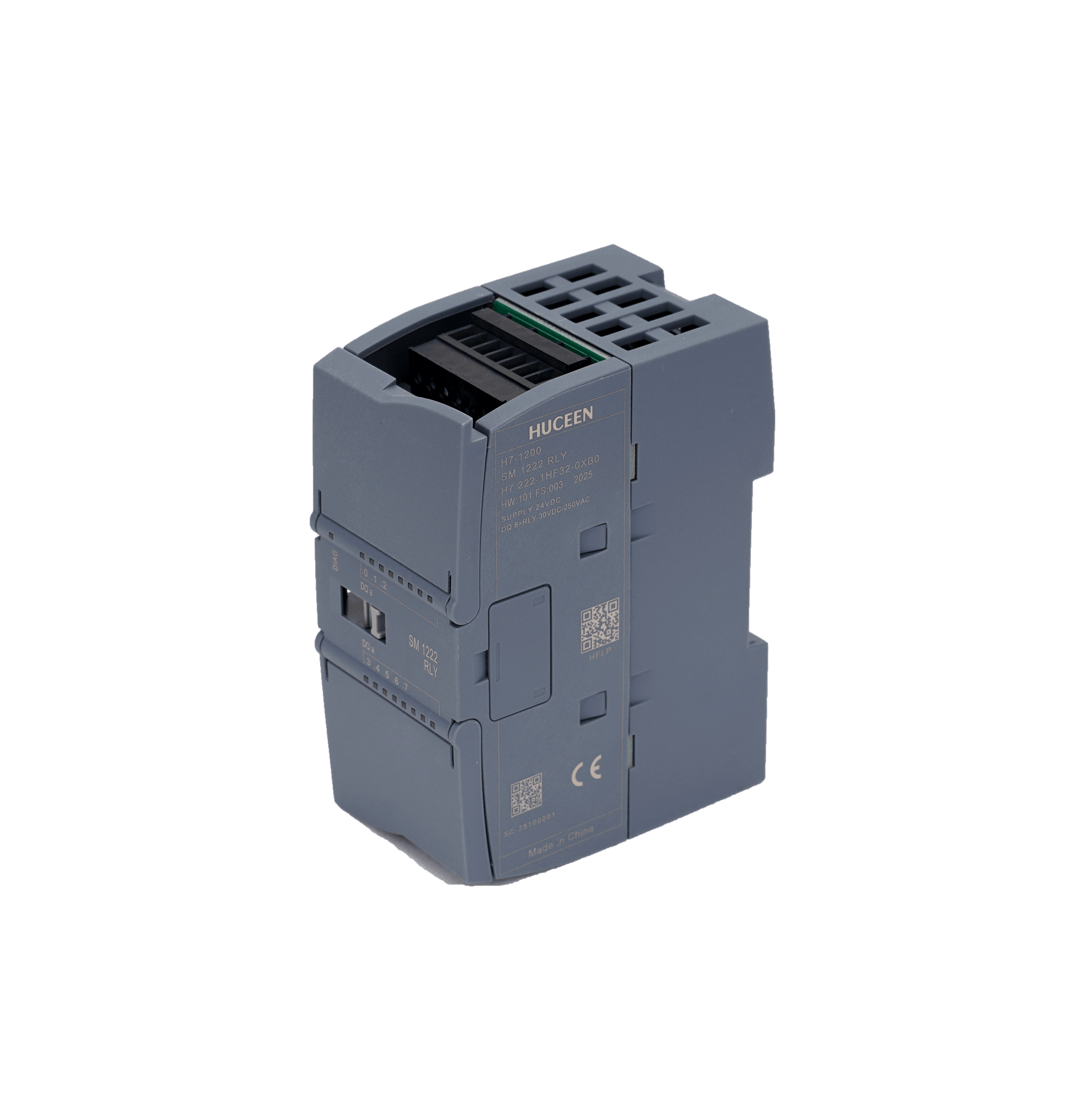

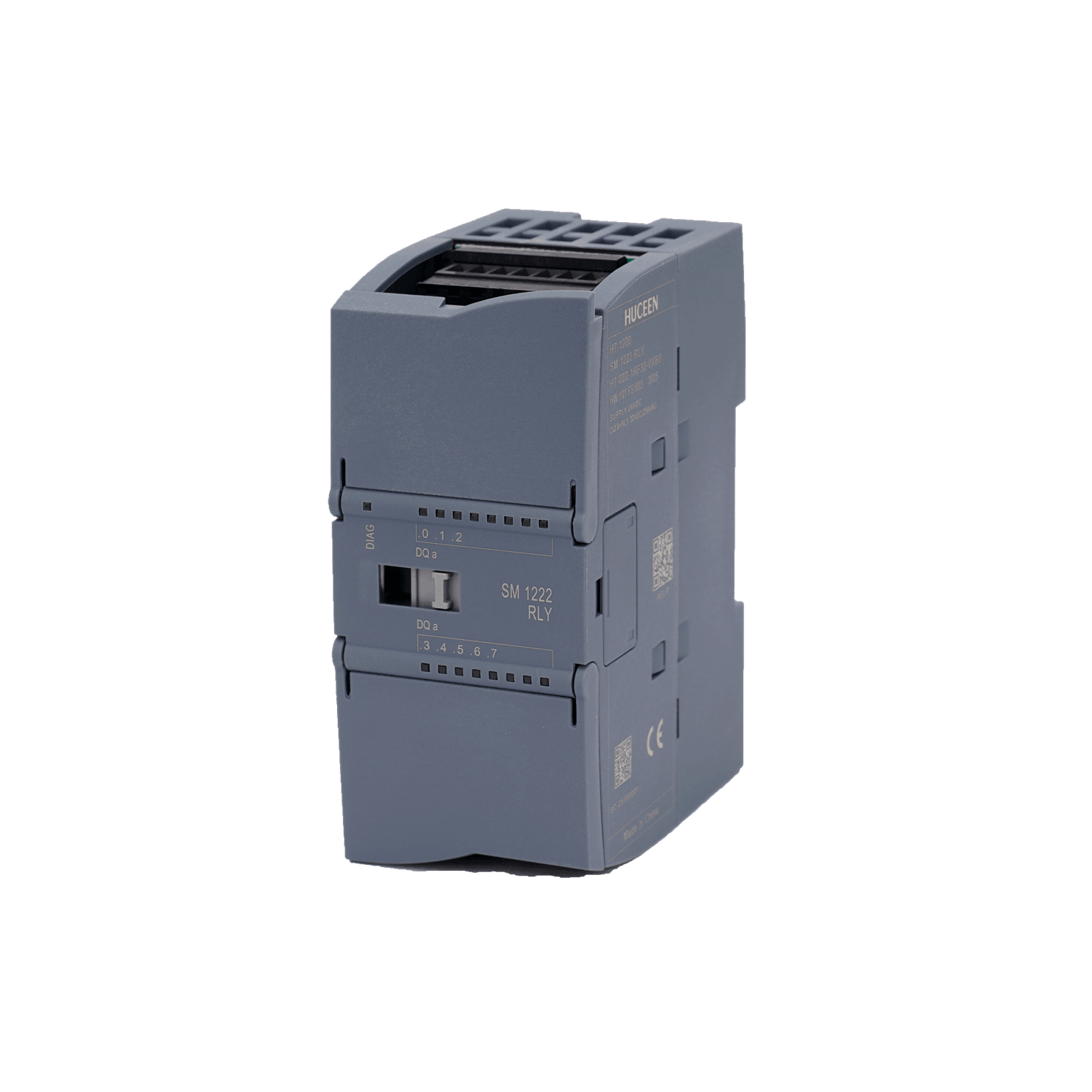

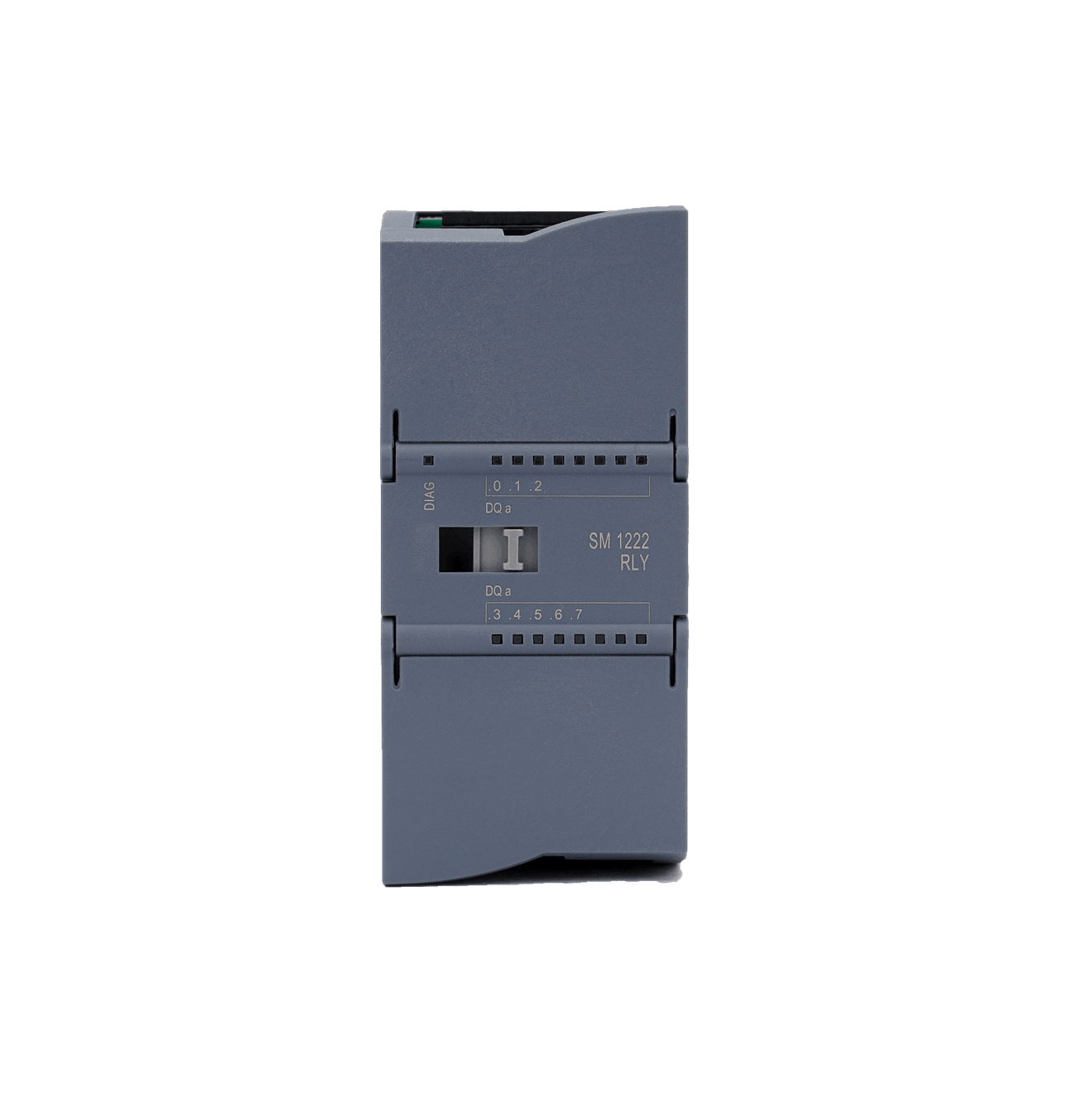

SM1222 DQ8xRLY

Digital output module DQ8 x Relay,Power Consumption:4.5W

Model no

SM1222 DQ8xRLY

Article No

H7 222-1HF32-0XB0

Description

digital output module DQ8 x Relay

WxHxD（mm）

45x100x75mm

+86 13713990149

sales@huceen.com

Contact Now + Inquire

Product parameters Wiring diagram Relevant information

Standard	Model no	SM1222 DQ8xRLY
	Article No	H7 222-1HF32-0XB0
	Description	digital output module DQ8 x Relay

Conventional norm	Dimensions WxHxD（mm）	45×100×75mm
	Power Consumption	4.5W
	Available current（SM bus）	120mA
	Available current（Sensor power 24V）	each relay coil used is 11mA

Digital output	Number of Outputs	8
	Output Type	Relay, dry contact
	Voltage Range	5-30V DC or 5-250V AC
	Logic 1 Signal at Maximum Current	-
	Logic 0 Signal with 10KΩ Load	-
	Electric Current(Max)	2A
	Lamp Load	30W DC/200W AC
	Flood Leakage Current of Each Point	-
	Surge Current	it is 7A when the contact is closed
	Isolation(field side and logic side)	1500V AC, lasting 1 min(Coil and contact）; None(coil and logic side )
	Isolation Group	2
	Current of Each Public Terminal (Max)	10A
	Switching Delay	Up to 10ms
	Mechanical Lifetime (non-responsible)	10,000,000 break/close cycles
	Lifetime under Rated Load	10,000,000 break/close cycles
	Behavior at RUN-STOP	previous value or replacement value (default is 0)
