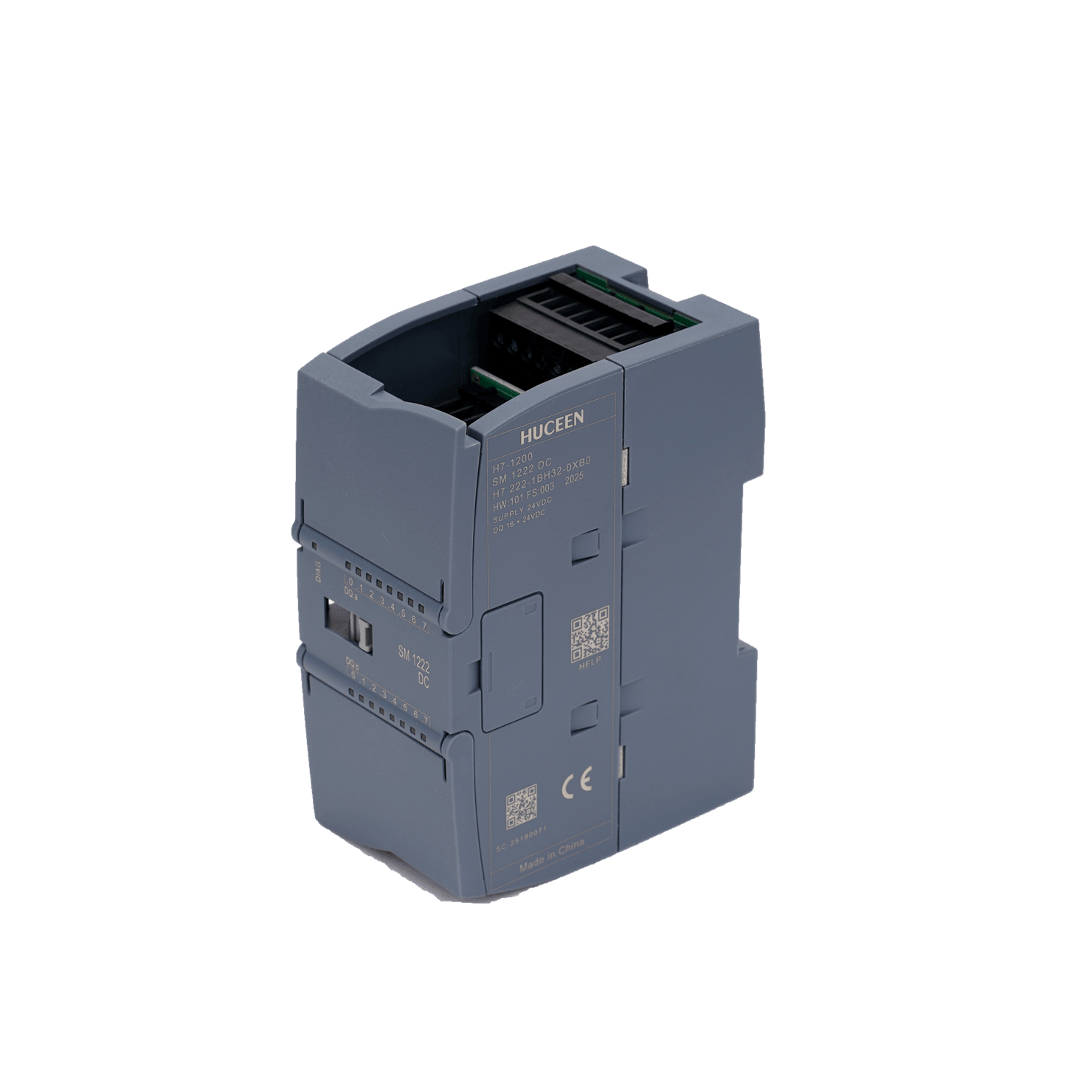

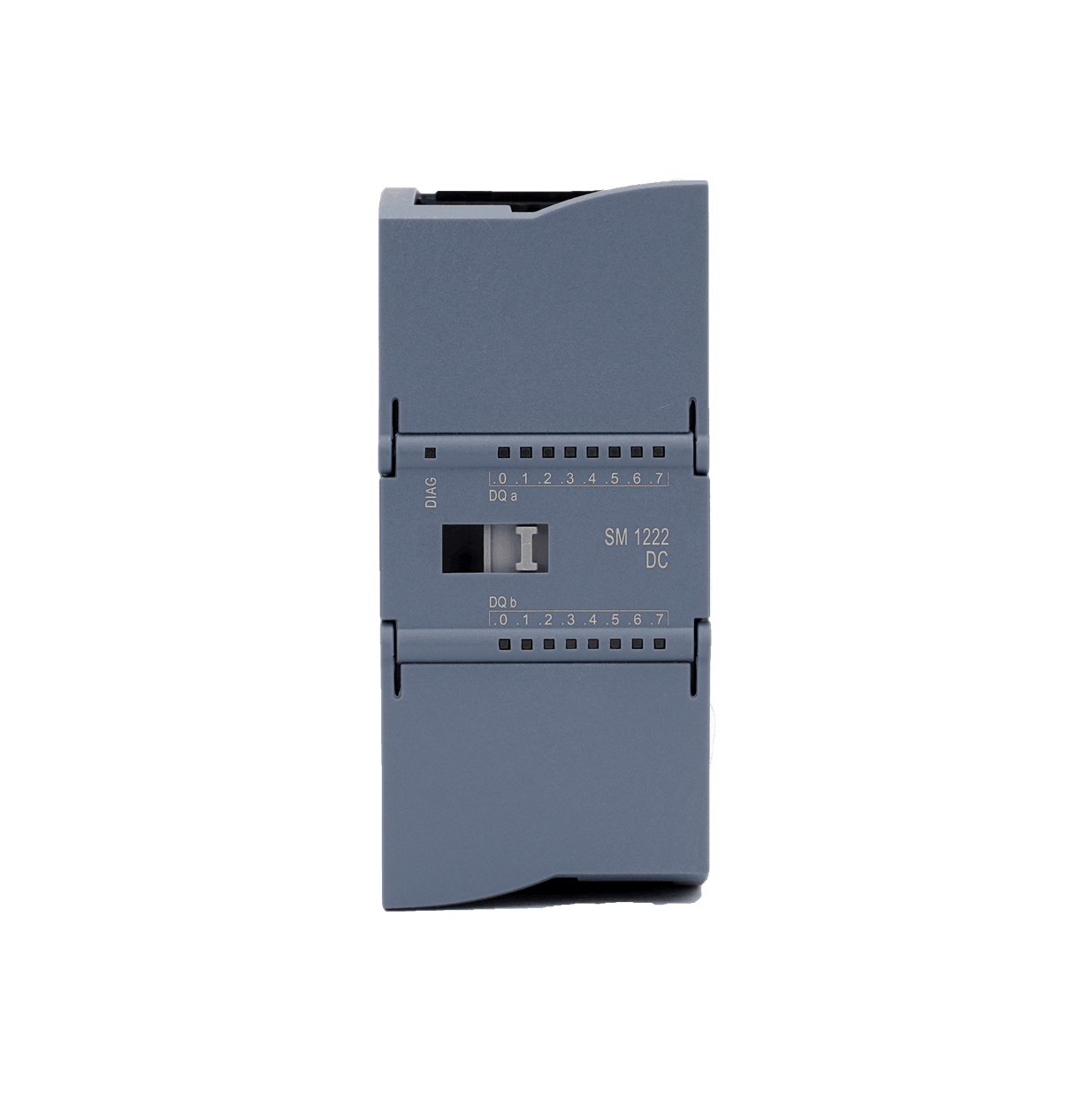

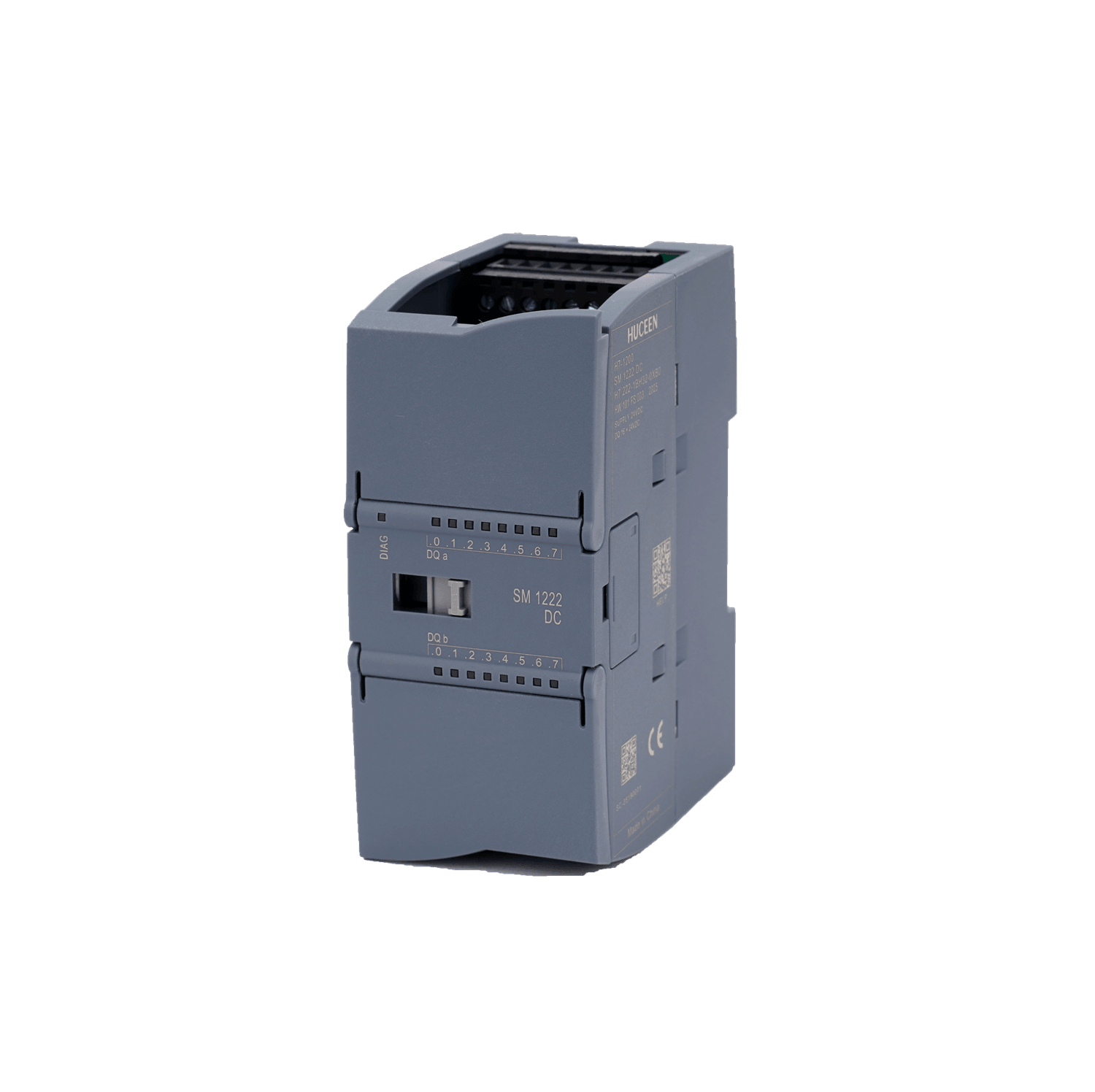

SM1222  DQ16x24VDC

Digital output module DQ16 x 24VDC, Transistor

Model no

SM1222 DQ16x24VDC

Article No

H7 222-1BH32-0XB0

Description

digital output module DQ16 x 24VDC, Transistor

WxHxD(mm)

45x100x75mm

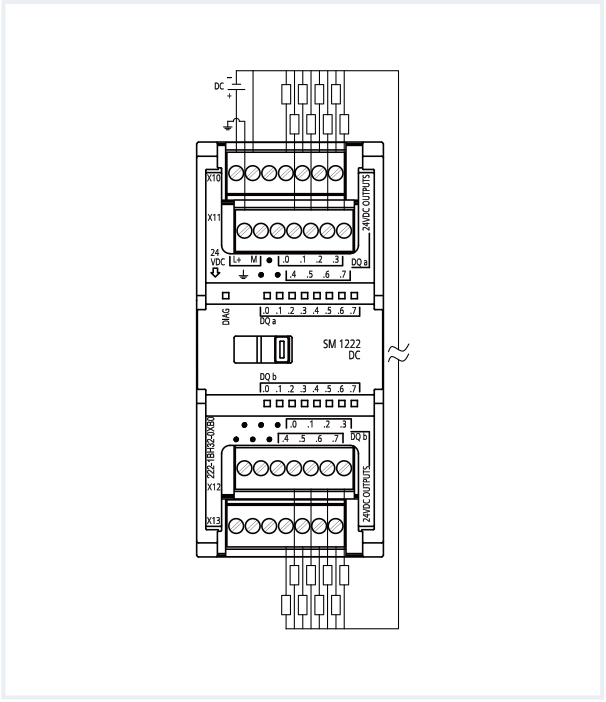

Product parameters Wiring diagram Relevant information
Standard Model no SM1222  DQ16x24VDC

Article No

H7 222-1BH32-0XB0

Description

digital output module DQ16 x 24VDC, Transistor

Conventional norm

Dimensions WxHxD(mm)

45×100×75mm

Power Consumption

2.5W

Available currentSM bus

140mA

Available currentSensor power 24V)

100mA
Digital output Number of Outputs 16
Output Type Solid-MOSFET (source type)
Voltage Range 20.4 - 28.8V DC
Logic 1 Signal at  Maximum Current min 20V DC
Logic 0 Signal with 10KΩ Load max 0.1V DC
Electric Current(Max) 0.5A
Lamp Load 5W
Flood Leakage Current of Each Point max 10μA
Surge Current 8A, max. lasting 100ms
Isolation(field side and logic side) 500V AC, lasting 1 min
Isolation Group 1
Current of Each Public Terminal (Max) 8A
Switching Delay from the disconnection to connection(Max): 50µs;
from the connection to disconnection(Max): 200µs
Mechanical Lifetime (non-responsible) -
Lifetime under Rated Load -
Behavior at RUN-STOP previous value or replacement value (default is 0)
